Ray pl d30
Ray pl d30
Ray collection
Indoor | Ceiling lamps
cod. 327563

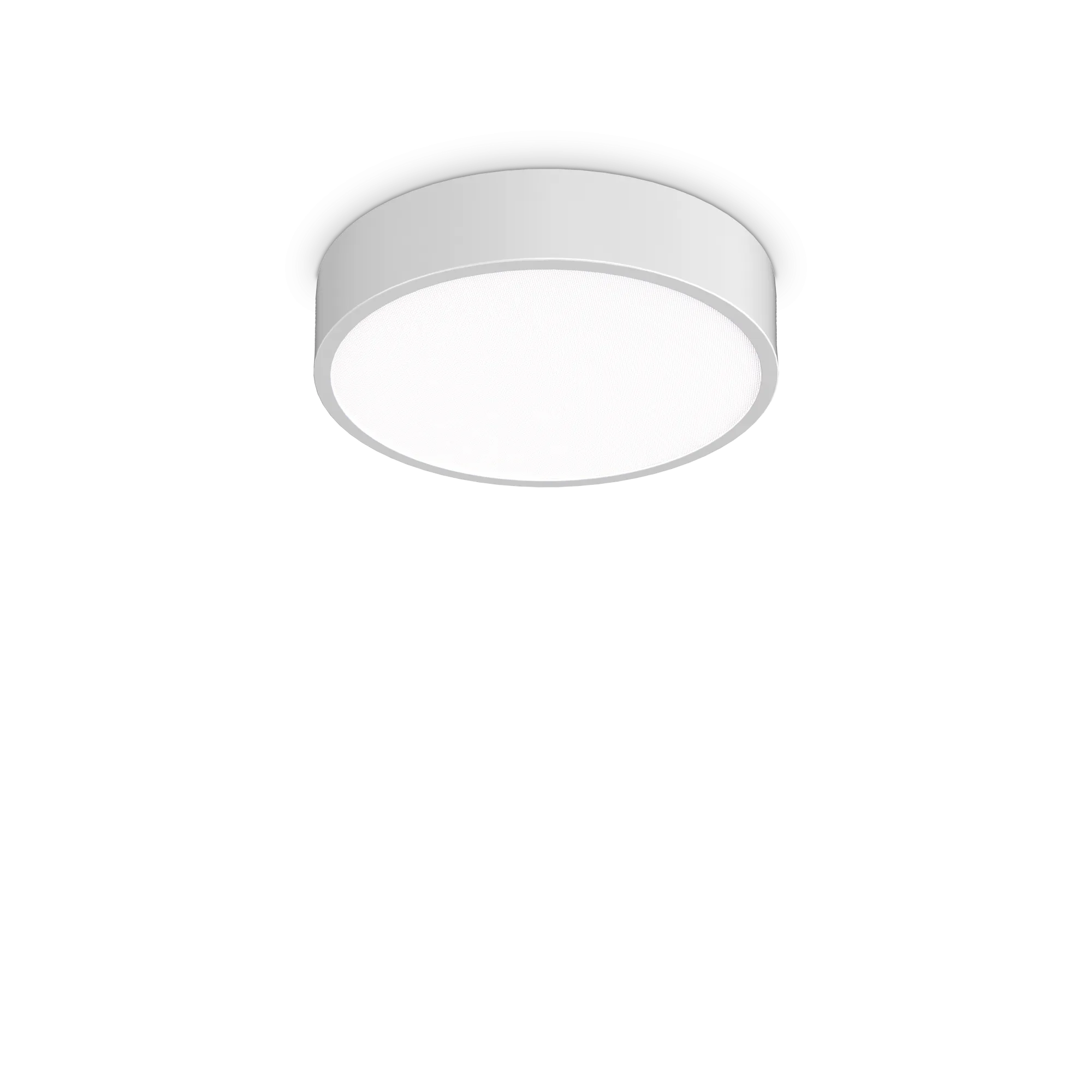

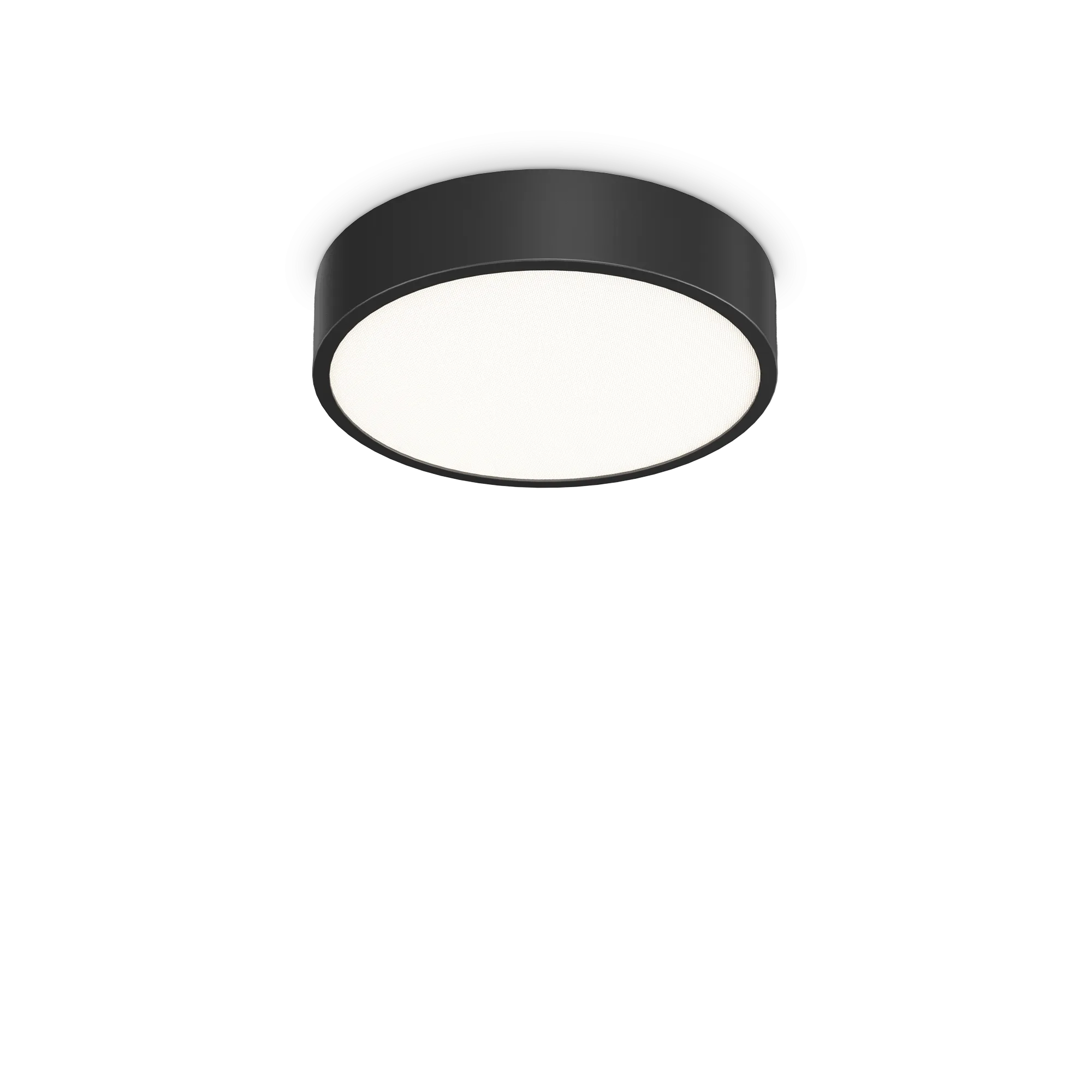

Family composed by ceiling lamps with circular base, available with three different diameters (300 mm, 400 mm, 600 mm). Body with white finish RAL 9016 or black finish RAL 9005, optics with PMMA microprismatic diffuser with glare control (UGR < 19, 22). Integrated LED light source; available with temperature CRI ≥90; LED useful life 50.000 L70B50 ; protection IP44, insulation class II. The lamp is equipped with an integrated switch to set up two different light emission tonality (color temperature 3000 k or 4000 k). Driver included, integrated in the body, dimmable options available. Product suitable for environments where a flexible, comfortable and uniform light is required, for example OFFICES and in the indoor spaces of the SERVICES SECTOR or RESIDENTIALS.
Ø 300 x H 65 mm
13W
50000 h
3000-4000 K
2000 lumen
Downloads
Color
Ray collection
D30
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
D40
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
D60
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
