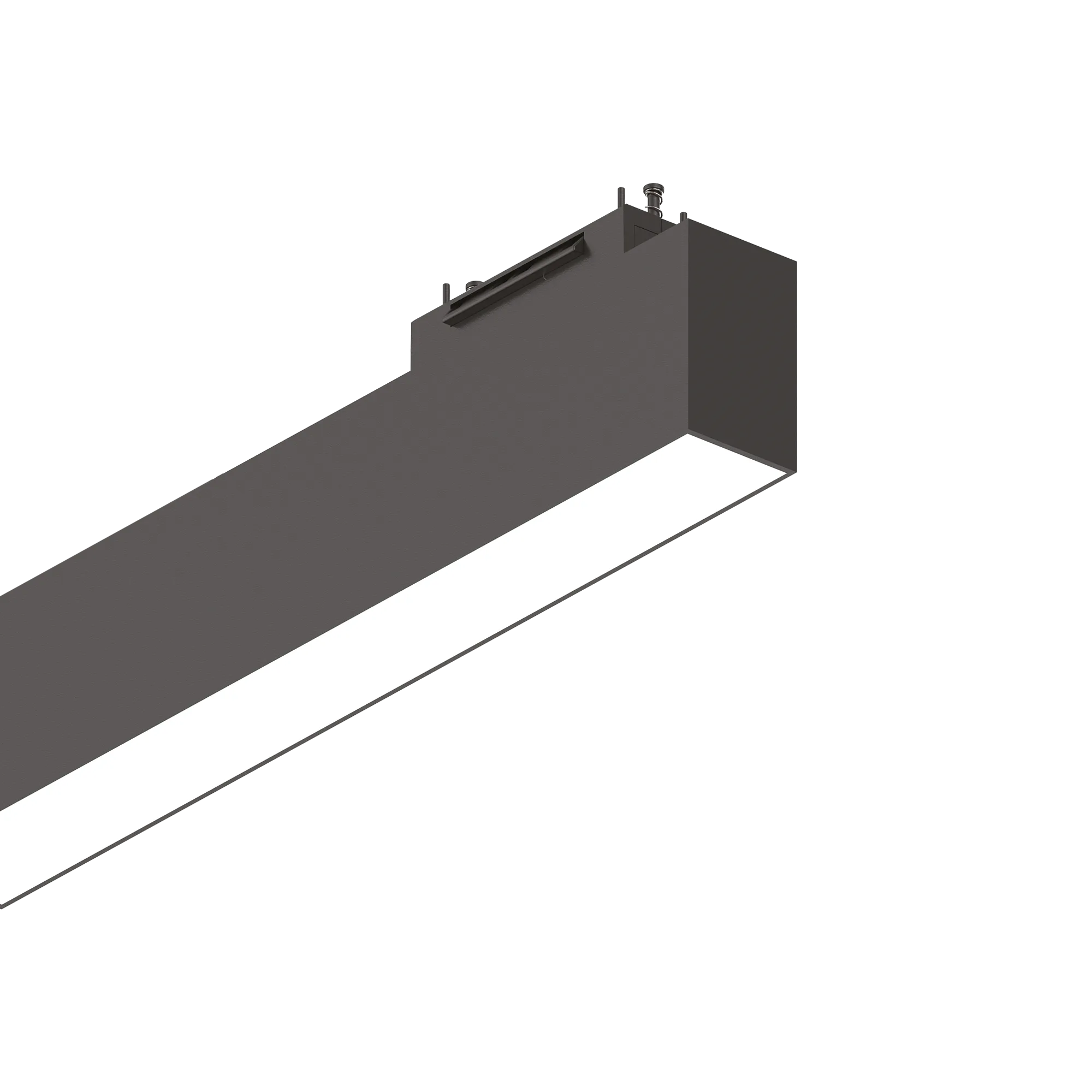

Arca wide 25w 4000k

Arca wide 25w 4000k

Arca collection

Technical | Systems

cod. 223032


Extruded aluminum linear system compatible with a wide range of lighting fittings with mechanical fixing. The system is anodized and varnished. It is available in black color and for different kind of installations: ceiling, suspension, or flush in plasterboard ceilings. Modules can be assembled according to the desired arrangement. Track modules are available with satin brass finish too. The body section for the ceiling and suspension versions is 42 mm wide and 85 mm high, while the body for recessed version is 86 mm wide and 90 mm high. Both models are available in two lengths: 1000 mm and 3000 mm. Possibility of assembly with different source modules: the WIDE diffusing module, the ACCENT module with UGR control lower than 13, the TRACK, TRACK FLAT or PENDANT modules for SPOT illumination with different emission angles. The CORNER module for angle composition. Integrated LEDs, possibility of color temperature of 3000 K or 4000 K; starting binning ≤3-Step MacAdam; IP20 protection; insulation class III; LED useful life 50.000 h L70B50. The 48Vdc power supply gives great versatility and safety, with reversible settlement that can be modified if necessary. The system is suitable for environments where professional lighting with minimal design is required, such as OFFICES and SHOPS.

L 605 x H 71 x P 35 mm
25W

50000 h
4000 K
4050 lumen

IP20

Downloads arrowIcon
Color
colorImage

Arca collection

back
ACCENT CRI > 80
Power
Angle
Flux
CCT LED
Color
cod.
Download
PENDANT CRI > 80
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK CRI > 80
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
WIDE CRI > 80
Power
Angle
Flux
CCT LED
Color
cod.
Download

OPTIONAL

ARCA CORNER RECESSED RIGHT LEFT+CONNECTOR BK
283142
Arca corner recessed right left+connector bk
colorImage Black
ARCA CORNER SURFACE RIGHT LEFT+CONNECTOR BK
283180
Arca corner surface right left+connector bk
colorImage Black
ARCA COVER 1000 MM BK
222912
Arca cover 1000 mm bk
colorImage Black
ARCA EGO DRIVER BOX D255 BK
302362
Arca ego driver box d255 bk
colorImage Black
ARCA EGO DRIVER BOX D255 WH
302379
Arca ego driver box d255 wh
colorImage White
ARCA EGO DRIVER BOX D330 BK
302348
Arca ego driver box d330 bk
colorImage Black
ARCA EGO DRIVER BOX D330 WH
302355
Arca ego driver box d330 wh
colorImage White
ARCA EGO DRIVER ON-OFF 075W 48Vdc
223155
Arca ego driver on-off 075w 48vdc
ARCA EGO DRIVER ON-OFF 096W 48Vdc
223162
Arca ego driver on-off 096w 48vdc
ARCA EGO DRIVER ON-OFF 150W 48Vdc
223179
Arca ego driver on-off 150w 48vdc
ARCA EGO DRIVER ON-OFF 240W 48Vdc
224275
Arca ego driver on-off 240w 48vdc
ARCA ENDCAP ELECTRIFIED FOR PENDANT BK
223131
Arca endcap electrified for pendant bk
colorImage Black
ARCA ENDCAP ELECTRIFIED FOR SURFACE / RECESSED BK
223124
Arca endcap electrified for surface / recessed bk
colorImage Black
ARCA ENDCAP NO ELECTRIFIED BK
223148
Arca endcap no electrified bk
colorImage Black
ARCA KIT SINGLE STEEL CABLE 2 MT
276366
Arca kit single steel cable 2 mt
colorImage Black
ARCA KIT SURFACE FOR 1 MT
222899
Arca kit surface for 1 mt
colorImage Black
ARCA LENS 15° FOR PENDANT 21W
223292
Arca lens 15° for pendant 21w
colorImage Clear
ARCA LENS 18° FOR PENDANT 15W
223285
Arca lens 18° for pendant 15w
colorImage Clear
ARCA LENS 18° FOR TRACK 14W
223094
Arca lens 18° for track 14w
colorImage Clear
ARCA LENS 20° FOR TRACK 5W
223087
Arca lens 20° for track 5w
colorImage Clear
ARCA LINEAR CONNECTOR BK
254944
Arca linear connector bk
colorImage Black
ARCA PROFILE 1000 mm RECESSED BK
222769
Arca profile 1000 mm recessed bk
colorImage Black
ARCA PROFILE 1000 mm SURFACE BK
222745
Arca profile 1000 mm surface bk
colorImage Black
ARCA PROFILE 3000 mm RECESSED BK
222882
Arca profile 3000 mm recessed bk
colorImage Black
ARCA PROFILE 3000 mm SURFACE BK
222752
Arca profile 3000 mm surface bk
colorImage Black
