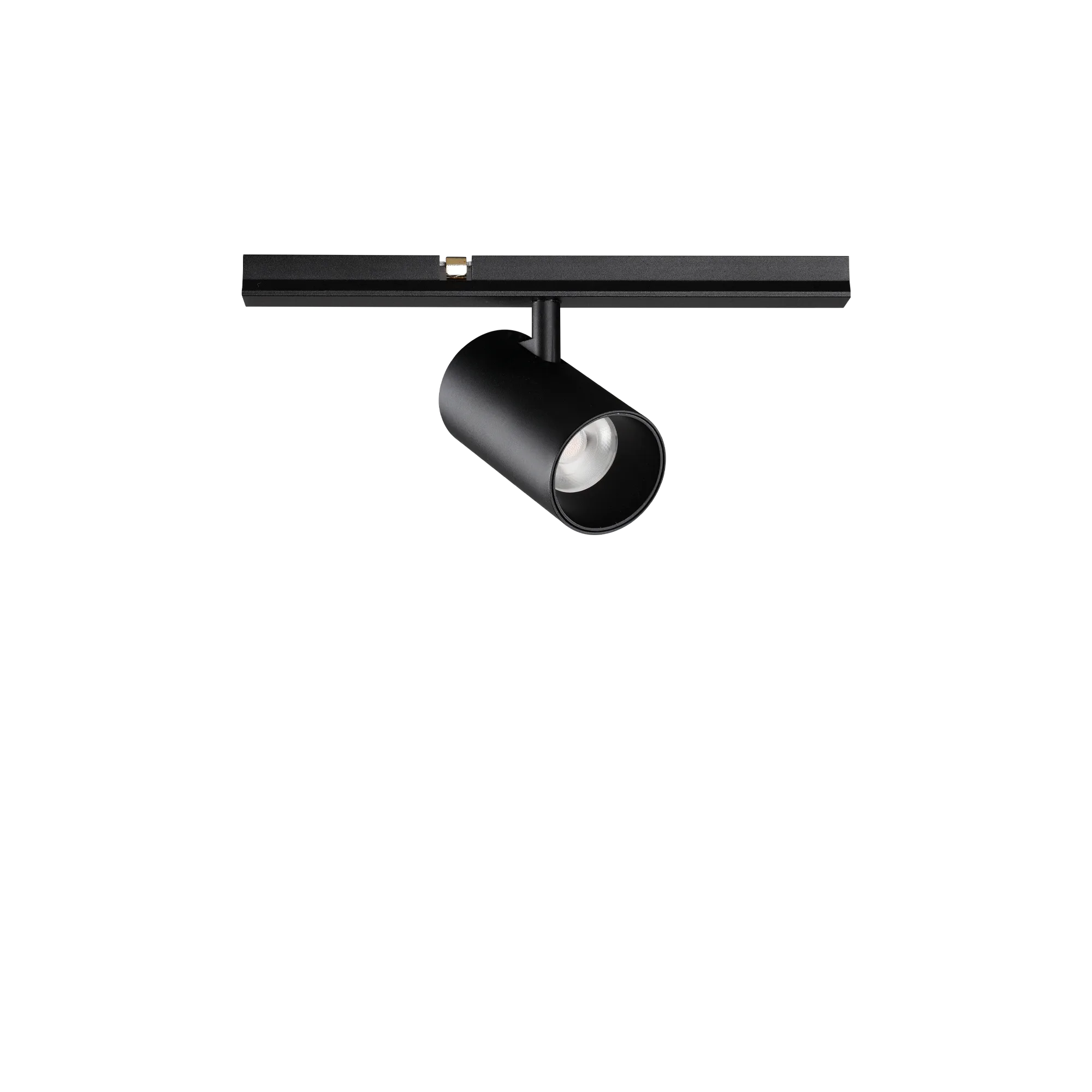

Stick track single 05w

Stick track single 05w

Stick collection

Technical | Systems

cod. 329529


Linear system composed of extruded aluminum profile and lighting elements with magnetic fixing. The system is available in matt black for ceiling (SURFACE) or recessed installation that disappears into the plasterboard (RECESSED). Smll profile section of 19 mm wide and only 13.5 mm high. Available in two lengths: 1000 mm and 2000 mm. Possibility of composition with different source modules which can be combined following the desired disposition and can be modified when needed: TRACK SINGLE and DOUBLE modules for a spot illumination, ACCENT module for a localized illumination and WIDE modules for a diffused and uniform illumination. Integrated LED technology with color temperature of 3000k; high color rendering CRI 90; IP20 protection, insulation class III, 48 Vdc power source,; LED useful life 30.000 h L70B5. The system is also available with 1-10 V or DALI dimmable version. Ideal for lighting details or small spaces where great flexibility and high light quality is required, such as MUSEUMS, RESIDENTIAL and RETAIL spaces.

L 150 x H 72,5 x P 32 mm
5W

30000 h
3000 K
470 lumen

IP20

Downloads arrowIcon

Stick collection

back
ACCENT CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK DOUBLE CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK SINGLE CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
WIDE CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download

OPTIONAL
